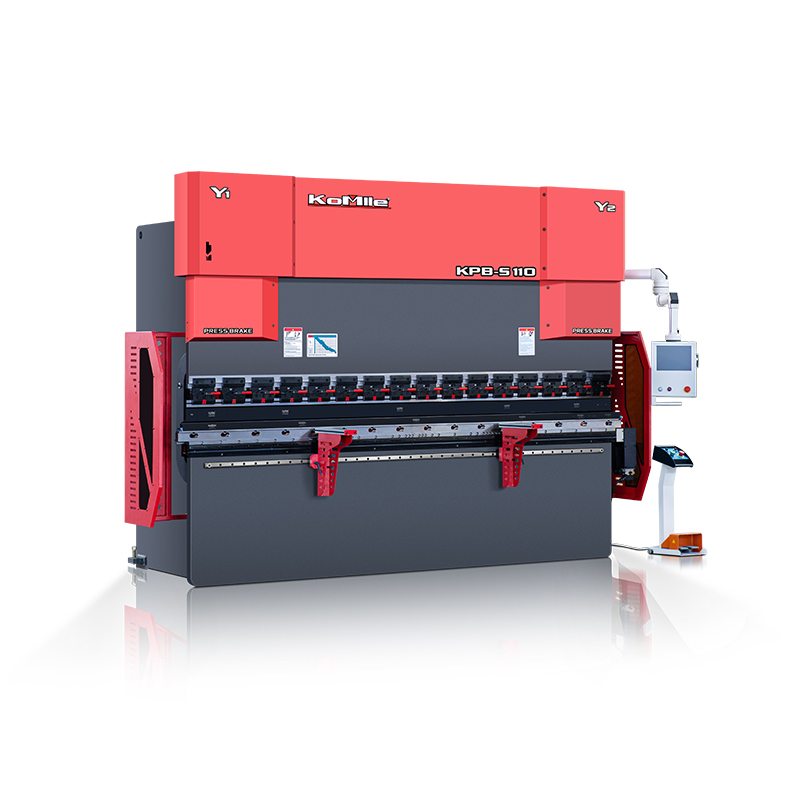

Product parameters
Nominal pressure | 1100KN | Outer width of the machine | 3500mm | |
Slider stroke | 200mm | Lateral depth of the machine | 1750mm | |
Numerical control axis number | 4+1(+2) | Total machine height | 2850mm | |
Main motor power | 7.5KW | Workbench length | 3200mm | |
Running speed of slider | Fast | 200mm/s | Column spacing | 2750mm |
Work | 15mm/s | Turn on high Open height | 460mm | |
Return trip Retum trip | 160mm/s | Throat mouth depth Throat depth | 400mm | |
Backshift X-axis Real gear X shaft | Trip | 500mm | Note: Y1 and Y2 axis - control slider up and down movement X axis - control backward and rearward movement R axis - control backward and downward movement V axis - mechanical deflection compensation (optional) Note: Y1, Y2 axis -control sliding block up and down motion X axis - back and forth movement of control rear qear R axis - control up and down movement of post-gear V axis -mechanical defect compensation( Optional) | |
Maximum running speed | 600mm/s | |||
Repeatable positioning accuracy | 0.02mm | |||
Backshift R shaft Real gear R shaft | Trip | 160mm | ||
Maximum running speed | 300mm/s | |||
Repeatable positioning accuracy | 0.02mm |
