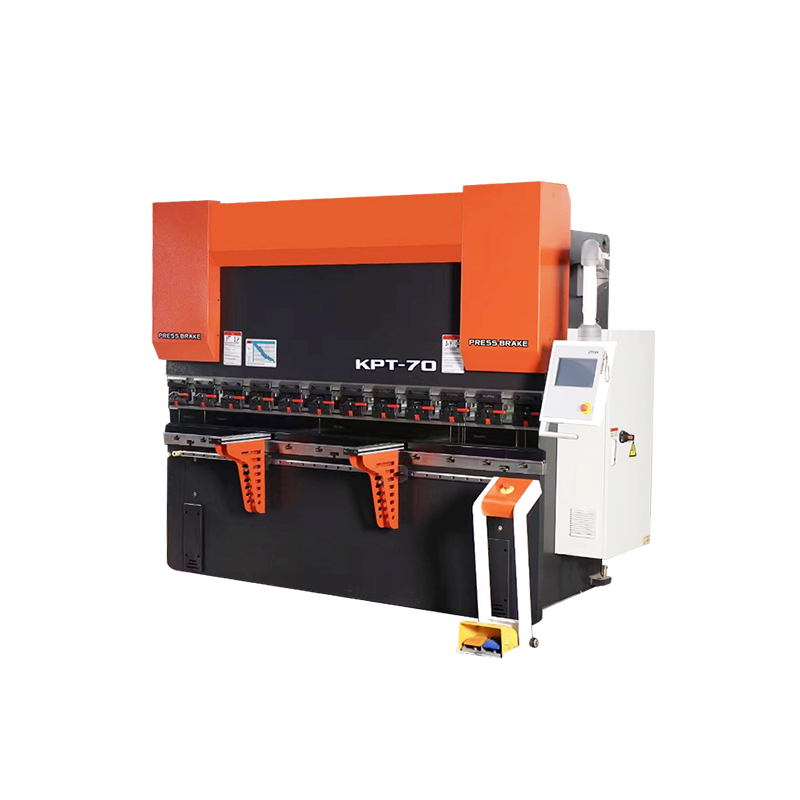

KPT-7025

A brand new industrial design with simple style, beautiful and elegant appearance
Optimal parameter ratio, better core configuration, stable performance and easy operation
Adopt a 3-axis control system, easy to operate.
High rigid frame, equipped with precision backstop material, achieve precise bending processing

Quantity:
Availability:





Inquire Add to Basket

Product details display

Precision back material

Precision backstop system ensures correct positioning of sheet metal parts and achieves constant side length.
Precision finger

Precision gears are high-precision gears that ensure the accuracy of bending dimensions.
TP10S CNC System

10-inch high-definition TFT 256K true color touch screen; standard Y and X1 axis servo motor;
Supports angle programming, and the system automatically calculates the bending depth of the board;
Slider (Y-axis) position control, rear gear (X1-axis) position control;
220 programs, 24 steps per program; soft limit function, power-off memory;
Optional support X2, R1, R2, Z1, Z2; optional support raft compensation.
Super C-type throat

The uniquely designed C-type throat will minimize the amount of deformation of the throat.
Unique and sturdy fuel tank

The fuel tank is digitally designed to optimize every detail, beautiful, practical, regular, clean, etc., add corrosion-resistant coating inside to extend the service life of hydraulic oil.
Movable front mount

The movable front mount on the track allows easy bending positioning.

KPT-7025

Related Products

content is empty!

Komile Machine Tool Manufacturing Co., Ltd. is a high-tech enterprise specializing in the production of CNC sheet metal machinery. The company relies on advanced management experience and adheres to the corporate spirit of excellence, and strives to build a famous Chinese sheet metal machinery brand.

http://weibo.com

Product Center

Fast Navigation

Consulting Service Hotline

+86-181-5553-3888

Address: No. 1100, East Liaohe Road, Bowang Town, Bowang District, Ma'anshan City, Anhui Province

- +86-18155533888

Nominal pressure		1100KN	Outer width of the machine	2550mm
Slider stroke		200mm	Lateral depth of the machine	1300mm
Numerical control axis number		2	Total machine height	2400mm
Main motor power		5.5KW	Workbench length	2500mm
Running speed of slider	Fast	60mm/s adjustable	Column spacing	2000mm
	Work		Open height	390mm
	Return trip Retum trip	75mm/s	Throat depth	280mm
Backshift X-axis Real gear X shaft	Trip	500mm
	Maximum running speed	600mm/s
	Repeatable positioning accuracy	0.02mm
Backshift R shaft Real gear R shaft	Overall Electric Lift and Drop Outside the System
