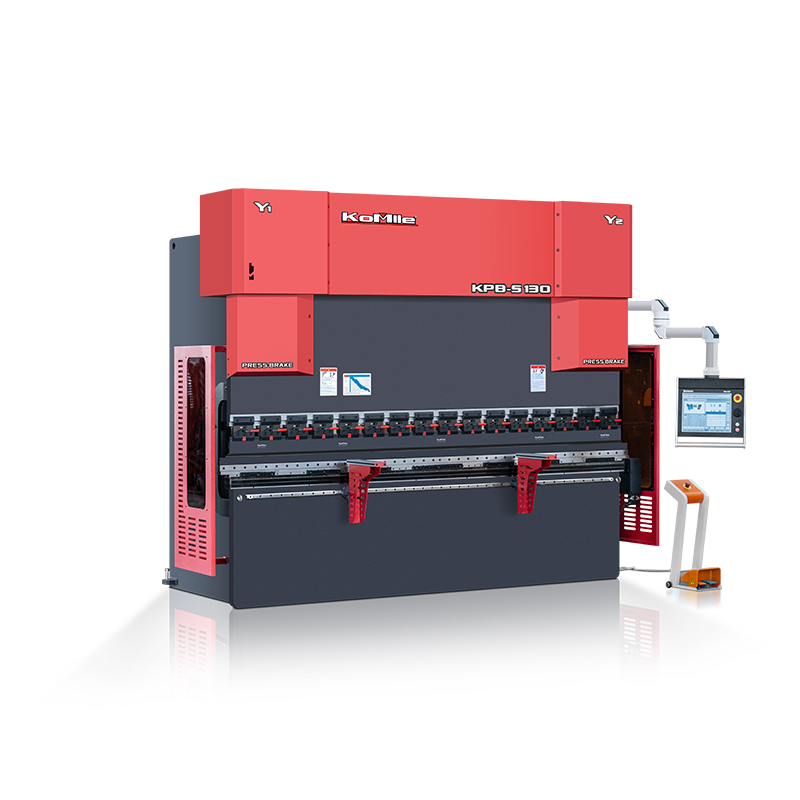

Nominal pressure Nominal pressure |
1300KN |
Outer
width of the machine |
3500mm |
Slider
stroke |
200mm |
Lateral depth
of the machine |
1750mm |
Numerical control axis
number |
4+1/6+1/8+1 |
Total machine
height |
2850mm |
Main
motor power |
5.5x2 |
Workbench
length |
3200mm |
Running speed
of slider |
Fast
|
220mm/s |
Column
spacing |
2750mm |
Work
|
15mm/s |
Open height |
460mm |
Return trip
Retum trip |
180mm/s |
Throat depth |
400mm |
Backshift X-axis
Real gear X shaft |
Trip
|
500mm |
Note:
Y1 and Y2 axis-control the upper and lower movement of slider
X axis-control the front and rear movement of back gear
R axis control the upper and lower movement of back gear
V axis-mechanical deflection compensation (optional)
Note:
Y1, Y2 axis -control sliding block up and down motion X axis - back and forth movement of control rear qear Raxis - control up and down movement of post-gear V axis -mechanical defect compensation(Optional) |
Maximum running speed Maximum running speed |
600mm/s |
Repeat positioning accuracy Repeatable positioning accuracy |
0.02mm |
Backshift R shaft
Real gear R shaft |
Trip
|
160mm |
Maximum running speed Maximum running speed |
300mm/s |
Repeat positioning accuracy Repeatable positioning accuracy |
0.02mm |
